Cyclone dust collector RLE2200_400V Holzmann Maschinen
Cyclone dust collector RLE2200_400V Holzmann Maschinen
€1,639.00
€1,821.11
-10%
Tax included
Delivered within 4-10 working days
Description

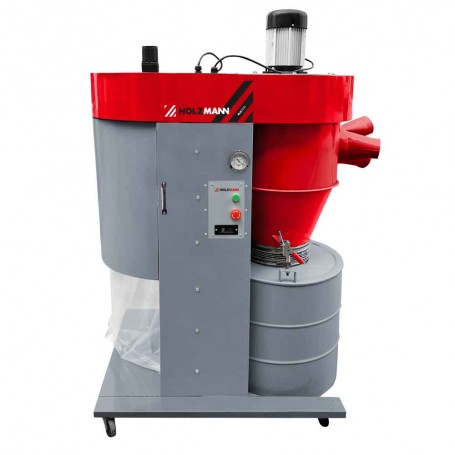

Cyclone dust collector RLE2200_400V Holzmann Maschinen
separation in cyclone separator with filter cartridge
inlet adapter for connecting a maximum of 3 woodworking machines
remote control to start/stop the dust collector
incl. transport device (wheels)
machine running time display
automatic filter cartridge cleaning after the dust collector has been switched off to ensure consistent dust collector performance (incl. collection filter bag).
collecting container with wheels and sight glass for checking the filling level of the collected wood chips/dust
technical details
motor data
motor power s1 in W
2200
voltage
400 V / 50 Hz
measurements
dust collector port in mm
1x Ø200 | 3 x Ø100
total dimensions in mm
1320 x 900 x 1840
dust collectors
suction performance in m³/h
2800
fan wheel diameter in mm
Ø 365
hypotension in Pa
2220
chip bag capacity in l
151 | 80
volume level and vibration
sound power level in dB(A)
87
sound pressure level in dB(A)
74
weight
gross weight in kg
170
net weight in kg
136
packaging
packaging width in mm
760
packaging length in mm
1.240
packaging height in mm
960
Data sheet
Data sheet
