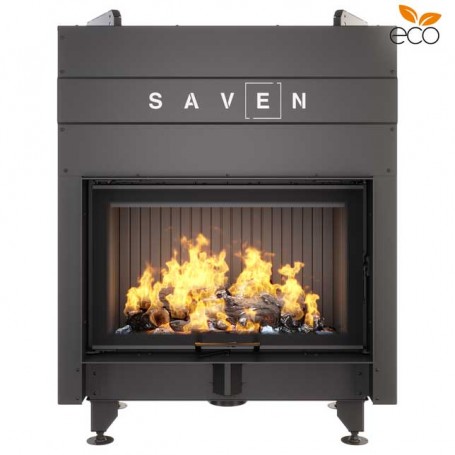

Fireplace insert G/SAVEN Energy Up 80x50 (17,0 kW) ECO - black chamotes

The model range of Black fireplaces includes steel fireplace insert lined with black fireclay. This is an interesting and fresh solution, because black fireclay has a number of advantages:

Quality. Czech full-bodied black fireclay 5 mm thick does not burn out at high combustion temperatures in the furnace, does not flake and does not crumble over time.

Security. The paint used in its production does not smoke and does not emit an unpleasant smell when burning.

Aesthetics. Black fireclay with original SAVEN design looks spectacular, adds depth and enriches the interior, both during burning and without fire.

Care. Black fireclay does not show dirt or soot, so the fireplace insert will always look neat.

Steel Fireplace Insert SAVEN Energy Up 80x50 Black (17.0 kW) ECO with Guillotine

SAVEN's steel fireplace inserts with a guillotine are made from certified materials and unique technologies. The main advantages of the SAVEN Energy Up 80x50 Black​ (17.0 kW) ECO steel fireplace insert include:

Convenient and Reliable Guillotine Door Lifting Mechanism

In the SAVEN Energy Up 80x50 Black (17.0 kW) ECO steel fireplace insert, the door opens by lifting it up, using the guillotine mechanism for regular use, and sideways opening to the right for maintenance. The benefits of this system include:

reliable sealing of the combustion chamber

quiet closing and opening

door fixation in any position

automatic door tightening for a secure seal

ability to add/remove weight to adjust the closing and opening as convenient for the user

side door opening mode for maintenance

Modern Technologies and Energy Efficiency

The SAVEN Energy Up 80x50 Black (17.0 kW) ECO fireplace insert quickly heats up and retains heat in the room for a long time, not only saving fuel costs but also maintaining a comfortable temperature and atmosphere in the home.

High efficiency of the steel fireplace insert due to the implementation of the flue gas diversion design

Compatibility of the steel fireplace insert with a recuperation system

Bottom and rear air connection

Double deflector in the steel fireplace insert for increased efficiency and better heat transfer

Sturdy and rigid construction that does not deform and is resistant to high temperatures

Sealing of the steel fireplace insert with fireplace ropes for additional sealing

Sturdy door profile of the steel fireplace insert with glass, resistant to bending and twisting under the influence of high temperatures

Unique design of the legs of the fireplace insert with straight glass, ensuring easy and fast installation

Smooth and easy flame control with single regulator

Quality Certified Materials from the EU

The guillotine steel fireplace insert SAVEN Energy Up 80x50 Black (17.0 kW) ECO is made exclusively from tested and high-quality materials. The production includes:

Hot-rolled sheet of low-alloy boiler steel with a thickness of 3 to 5 mm

Lining with thick protective refractory plates with SAVEN's proprietary design

Eco-friendly paint that does not emit smoke when ignited and is resistant to high temperature fluctuations

Heat-resistant glass from the German manufacturer Schott Robax (4 mm), capable of withstanding temperatures up to 760°C

Practicality and Safety

The SAVEN Energy Up 80x50 Black (17.0 kW) ECO steel fireplace insert is a versatile insert with a lifting mechanism that fits into any interior style and serves safely for many years.

Easy installation. The compact dimensions and weight of the steel fireplace insert allow for installation in almost any convenient location and at any stage of renovation.

Low maintenance. Wood in the fireplace insert burns efficiently, so ash is formed infrequently, and its removal is not frequent.

"Clean glass" system protecting the glass of the fireplace insert from fogging and soot.

Universal design that can be applied in various room styles.

Practicality. Accessories and SAVEN grilles can be purchased to visually complement your fireplace.

Safety. The SAVEN insert, thanks to precision manufacturing, is securely sealed and safe to use.

Ecological care. The energy-saving principle helps use natural resources rationally and preserve the environment for future generations.

Producer: SAVEN (Ukraine)

Nominal heat output (kW): 17.0

Heating capacity (m²/m³): 170 / 425

Efficiency (%): 81.2%

Length (mm): 959

Height (mm): 1252

Width (mm): 573

Weight (kg): 269

Flue pipe diameter (mm): 200

Door opening mechanism: upwards

Glass form: straight

Main glass demension (mm): 763х460х4

"Clean glass" system: yes

Chamotes color: black

Flue exit options: top / rear

External air supply: lower / rear

Air inlet diameter (mm): 125

Double combustion: yes

Compatible with recuperation: yes

Compatible with Ecodesign

requirements:

yes

Energy class: A+

Fuel: wood

Max length of wood (mm): 700

Material: Steel

Warranty period (months): 60
