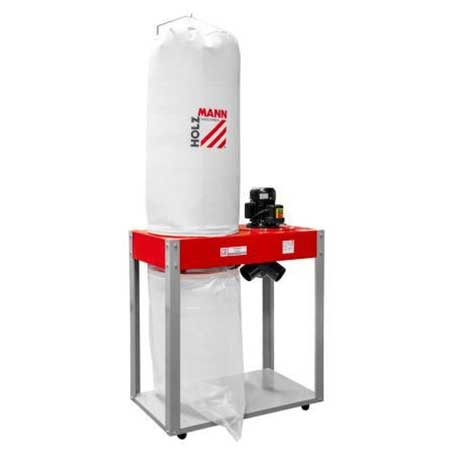

Dust collector ABS3000SE-230V Holzmann Machinen
Dust collector ABS3000SE-230V
Description
Dust collector ABS3000SE-230V
Highlights
solid blow wheel
rugged dust collector housing
powerful motor and smart design
constantly high performance at duty
connection of three machines simultaneously possible with distributor piece
big filter surface enables high suction performance (filter-dimension: ø500 /1100mm)
four casters allow total workshop mobility
included in delivery: moving device, filter- and chip bag set; distributor
Technical details
motor data
motor power s1 in W 1500
voltage 230V / 50Hz
cable length 1,8m
speed in min-1 2950
measurements
total dimensions in mm 985x560x2250
dust collectors
suction performance in m³/h 3000
chip bag diameter in mm 500
chip bag length in mm 850
fan diameter in mm 300
outputs 3x (ø100mm)
hypotension in Pa 2200
volume level and vibration
sound pressure level in dB(A) <85
weight
gross weight in kg 48
net weight in kg 45
packaging
packaging width in mm 595
packaging length in mm 1.050
packaging height in mm 505
