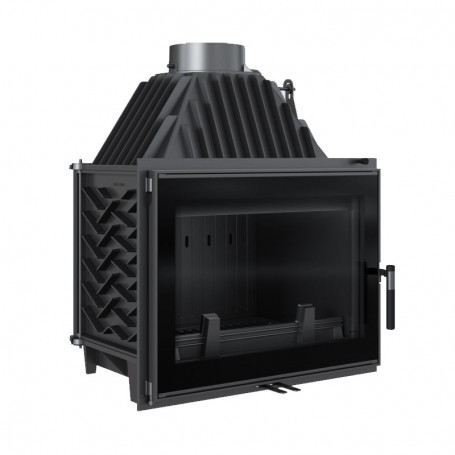

Zosia ECO built-in fireplace
The Zosia ECO insert has a post-combustion system, which, together with other technical solutions, has a very good combustion efficiency, which makes the firebox meet the stricter requirements of ecological design.
It is simple and safe to use, and has maximum energy utilization.
The device is equipped with a glass cleaning system - the so-called air curtains. Air flow separates the glass from the combustion chamber, which reduces soot deposition on the glass and emits more heat into the room. This allows you to keep attractive and clean glass for a long time.
Cleaning the insert is easier thanks to the built-in grid and the container where the ash collects. In addition, the insert has a removable fence, which prevents wood from falling out of the hearth and makes it easier to clean the fireplace.
The fireplace insert is equipped with a double back panel, with the ease of dismantling the inner back part.
TEHNICAL SPECIFICATIONS
| Model | Zosia ECO |
| Rated power (kW) | 12 |
| Maximum heating power (kW) | 5.5 – 14.0 |
| Estimated space (m²): | 70-90 |
| Smoke outlet (fi in mm) | 200 |
| Minimum size of upper air flow grilles: | ≥ 900 cm2 |
| Minimum size of the lower air flow grilles: | ≥ 700 cm2 |
| Thermal efficiency (%) | 83 |
| CO emission (at 13% O2) | 0,09 |
| Flue gas temperature (°C) | 277 |
| Weight (kg) | 194 |
| Max length of logs (cm) | 50 |
| Recommended type of fuel | wood |
Maximum utilization of energy
The insert is equipped with externally mounted densely placed radiators. Due to such a solution, the area of heat transfer to the environment is much larger, and at the same time the mass of the fireplace increases.
Combustion of fuel particles is achieved thanks to the equipped deflector that extends the exhaust path. This process also increases combustion efficiency and guarantees a better use of energy, while at the same time reducing the emission of harmful substances into the atmosphere.
The device has a triple combustion chamber ventilation system, so the process of burning wood in the insert is ecological and, most importantly, economical.
The supply of primary air to the insert is carried out from the outside thanks to the built-in air supply (size 125 mm). The air supply is located in the lower part of the insert.
The combustion chamber irradiation regulation is independent for all three systems so that the user has better control over the combustion process.
Security at the highest level
The cast iron in front of the insert is equipped with decorative heat-resistant glass that can withstand temperatures up to 800 °C. The installed glass has a quality and safety certificate.
Densely placed radiators and furnace walls are made of high-quality 8 mm cast iron, guaranteeing safe operation and maximum utilization of heat.
