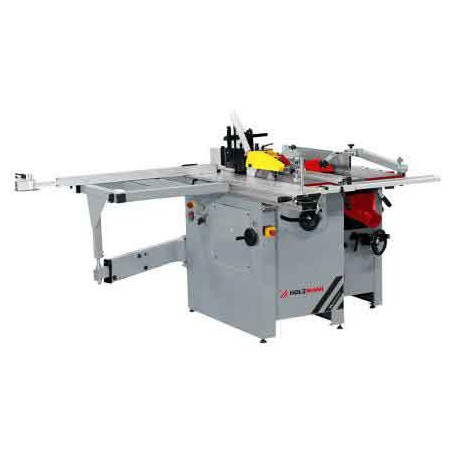

Combined 5-operation machine 5u1 K5260PSMW2_230V Holzmann Maschinenn
Reduced price

Combined 5-operation machine 5u1 K5260PSMW2_230V Holzmann Maschinenn

Combined 5-operation machine 5u1 K5260PSMW2_230V Holzmann Maschinenn

€11,139.99 €12,377.77 -10%
Tax included Delivered within 4-10 working days
 In stock

Description

Compact power for your workshop: HOLZMANN K5260PSMW2_230V – All-in-one machine for demanding DIY enthusiasts

For those who value short work processes and a well-organized workshop, the HOLZMANN K5260PSMW2_230V offers a space-saving multi-purpose solution that combines several powerful tools in one robust unit – perfect for ambitious hobby woodcarvers. This intelligently designed machine integrates a circular saw, a spindle shaping unit, a jointer and a thicknesser in one compact device. A highlight is the spiral cutter block on the planer, paired with a sliding formatting table for precise and professional results. Three independently driven motors drive each unit, providing powerful and reliable performance for every application – whether sawing, planing or routing. For even greater versatility, the machine can be optionally upgraded with the HOB310ECOLL groove attachment.

All in all: A compact machine that meets almost all workshop needs in one smart, multi-purpose unit.

technical details

planing

planing table size in mm 1090 x 260

max. thickness cutting depth in mm 3

planing stop in mm 700 x 123

fence slope 90-45°

engine data

engine power s1 in W 2200 | 1500 | 2200

voltage 230 V / 50 Hz

measurements

table size in mm 920 x 410

table height in mm 850

sliding table in mm 1320 x 238

table with stabilizer in mm 680 x 530

Opening for dust collection in mm 100 / 100 / 32

overall dimensions in mm 1320 x 2330 x 1090

cutting performance

max. cutting height 90° in mm 78

max. cutting height 45° in mm 63

max. trimming in mm 1300

max. cutting width on parallel guide in mm 710

thickening

table size in mm 545 x 258

cutting depth in mm 4

stitching height in mm 225

general planning

spindle diameter in mm 70

spindle speed in min-1 5500

technical specification

milling spindle diameter in mm 30

milling spindle speed in min-1 1400 | 4000 | 6000 | 9000

spindle stroke in mm 110

table opening in mm 160

max. tool diameter under the table in mm 160

max. tool diameter above table 180

circular saw

saw blade in mm 254 x 30 x 3/2.2

saw speed in min-1 4000

swivel saw blade 0-45°

noise and vibration level

sound power level in dB(A) 103

sound pressure level in dB(A) 89.5

weight

gross weight in kg 420

net weight in kg 362

packaging

packaging width in mm 1,155

packaging length in mm 1,160

packaging height in mm 970
