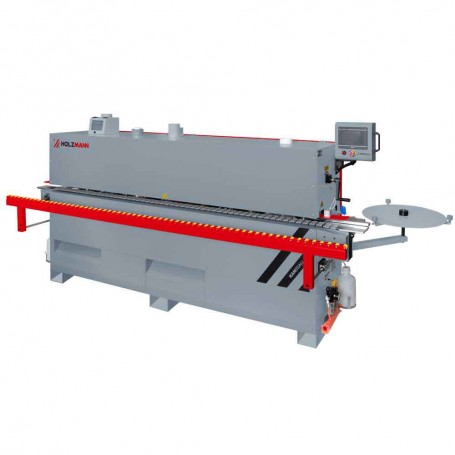

Edge banding machine KAM35ALL_400 Holzmann Maschinen
Reduced price

Edge banding machine KAM35ALL_400 Holzmann Maschinen

Edge banding machine KAM35ALL_400 Holzmann Maschinen

€15,538.14 €17,264.60 -10%
Tax included Delivered within 4-10 working days
 In stock

Description

HOLZMANN KAM35ALL_400V edge banding machine – Efficient edge processing in a compact machine size

The KAM35ALL_400V from the HOLZMANN KAM35 series is the top model in this series and the ideal solution for precise and economical edge banding – perfectly suited to small and medium-sized businesses. It is equipped with a pre-milling unit for perfect edge preparation, a gluing system for clean and even gluing, edge pressing and cutting for precise finishes, a fine trimming unit and a scraping unit for precise finishing and a corner trimming unit to ensure perfect corner rounding. Thanks to its compact design, the machine takes up very little space in the workshop and yet delivers professional results in industrial quality. The wide range of models in the KAM35 series allows you to choose exactly the right machine for your business needs.

technical details

engine data

motor power s1 in W 6900

voltage 400 V / 50 Hz

feed speed 8 m/min

measurements

dust collection opening in mm 5 x Ø 100

overall dimensions in mm 3705 x 1360 x 1585

table height in mm 850

workpiece measurements

min. workpiece length in mm 70

min. workpiece width in mm 80

min. workpiece thickness in mm 12

max. workpiece thickness in mm 50

edge banding

edge width in mm 15-55

edge thickness in mm 0.4-3

required air pressure in bar 6-7

noise and vibration level

sound power level in dB(A) 78

weight

gross weight in kg 1,062

net weight in kg 945

XL-Versand 17

packaging

packaging width in mm 725

packaging length in mm 3,265

packaging height in mm 1,448

Data sheet

Holzmann Maschinen
112771
10 Items
9120132141516
9120132141516
Data sheet
