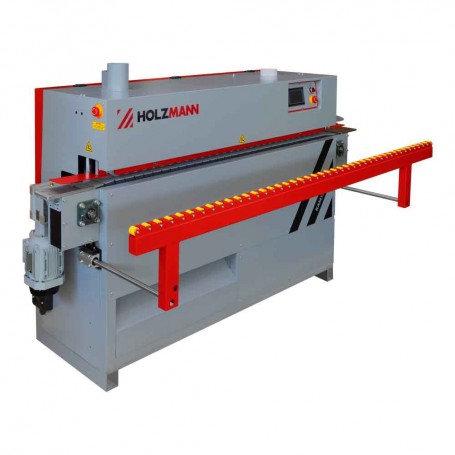

Edge banding machine KAM35ESV_400V Holzmann Maschinen
Reduced price

Edge banding machine KAM35ESV_400V Holzmann Maschinen

Edge banding machine KAM35ESV_400V Holzmann Maschinen

€10,113.99 €11,237.77 -10%
Tax included Delivered within 4-10 working days
 In stock

Description

HOLZMANN KAM35ESV_400V edge banding machine – Efficient edge processing in a compact machine size

The KAM35ESV_400V from the HOLZMANN KAM35 series is the ideal solution for precise and economical edge banding – perfectly suited to small and medium-sized businesses. It is equipped with a pre-milling unit for perfect edge preparation, an adhesive application system for clean and even gluing, edge pressing and cutting for precise edges and a milling and scraping unit for precise finishing. Note: This model does not have a polishing unit. Thanks to its compact design, the machine takes up very little space in the workshop and yet delivers professional results in industrial quality. The wide range of models in the KAM35 series allows you to choose exactly the right machine for your business needs.

technical details

motor data

motor power s1 in W 6180

voltage 400 V / 50 Hz

feed speed 8 m/min

measurements

table height in mm 850

dust collection opening in mm 2 x Ø 100

overall dimensions in mm 2625 x 1315 x 1315

workpiece measurements

min. workpiece length in mm 70

min. workpiece width in mm 80

min. workpiece thickness in mm 12

max. workpiece thickness in mm 50

edge banding

edge width in mm 15-55

edge thickness in mm 0.4-3

required air pressure in bar 6-7

noise and vibration level

sound power level in dB(A) 78

weight

gross weight in kg 637

net weight in kg 560

XL-Versand 17

packaging

packaging width in mm 725

packaging length in mm 2,200

packaging height in mm 1,248

Data sheet

Holzmann Maschinen
112756
10 Items
9120132141523
9120132141523
Data sheet
